Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
Conformant Standards: MIL-1-23053/5;JIS
Material: Chemically, cross-linked, thermally stabilised flame retardant polyolefin
Continuous Operating Temp: -75 to +135 degrees Celcius
Shrinkage Temp: 100 degrees Celcius
Longitudinal Shrinkage <5%
Tensile Strength: 16 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Volume resistivity: 1.0 x 1014 ohm cm
Elongation at Break point: 400%
Water Absorption: 0.15% max
Flammability: Passed ASTM-D-2671
UV stability: All tubing is stable (Except Clear)
Voltage Rating: 600V

Pre-cut service available for large quantities of tubing to customer specifications. Preferred supply option is a full reel of tubing. If your requirements are less than a full reel, please consider buying 4ft lengths.

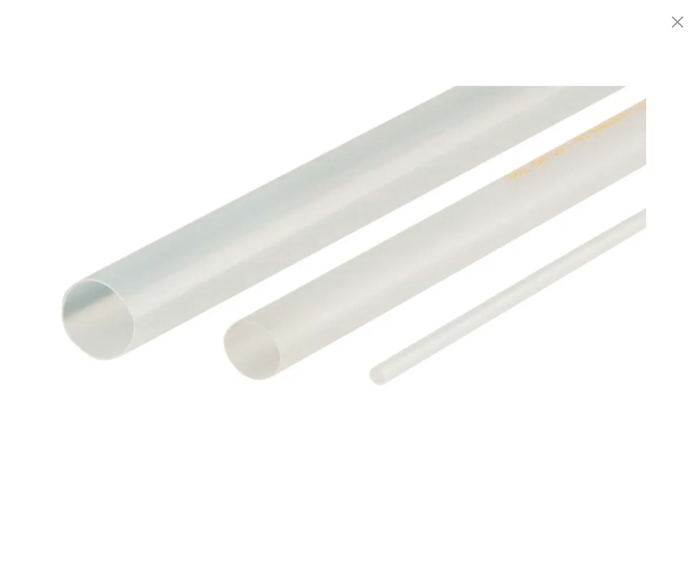

Heatshrink Colour: Clear
Heatshrink Type: Thin Wall Tube
Product Colour: Clear
Wall: Thin
Pre-Shrink Diameter (mm): 6.4
After – Shrink Diameter (mm): 3.2
Heat Shrink Tube Length (M): 1.2
Recovered Wall Thickness (mm): 0.56
Glue Lined: No
