Pre-Shrink Diameter (mm): 4.8
After – Shrink Diameter (mm): 2.4
Recovered Wall Thickness (mm): 0.48
Length: 4ft(1.2m)

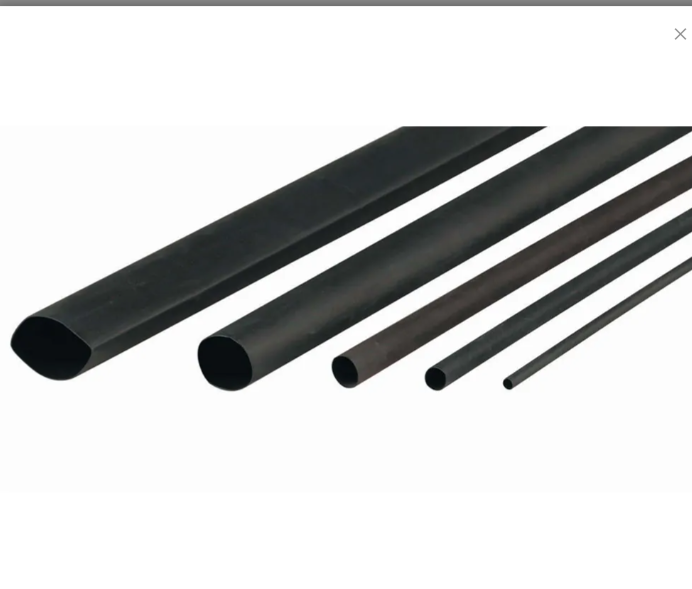

XLP tubing is available in a wide range of colours and sizes from 1.5mm to 125mm. The product datasheet includes a
selection chart for your reference, see Resources.

Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
Continuous Operating Temp: -75 to +135 degrees Celcius
Shrinkage Temp:>105 degrees Celcius
Longitudinal Shrinkage <5%
Tensile Strength: 10.4 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Elongation at Break point: 400%
Water Absorption: 0.15% max
Voltage Rating: 600V
Heat Shock: 250 degrees for 4 hours
